3M™ Scotchcast™ Resin kit 92-NBB GS is a premium Y-branch electrical splice, suitable up to 1 kV application. It contains the high-performance, epoxy-based, CMR-free 3M™ Scotchcast™ Resin 4 GS that changes colour after the two components of the resin have been correctly mixed. The innovative 3M closed mix & pouring system ensures quick and clean delivery of the resin into the transparent mould body design.
3M™ Scotchcast™ Resin kit 92-NBB GS is used for the insulation and mechanical protection of low voltage cable connections up to 1 kV. The three product options from Size 0 to Size 2 cover a range of cable cross sections from 1.5 mm2 to 35 mm2; in addition, Size 1 and Size 2 are also available with a connector included. The innovative design of the 3M™ Scotchcast™ Resin kit 92-NBB GS allows for a fast and clean installation, thanks to the 3M-patented spout integrated to the resin bag and the mould body. Correct cable setting is secured by the complete transparency of the mould. 3M™ Scotchcast™ 4 GS hydrophobic and CMR-free epoxy resin meets IEC 60455-3-8 requirements and is compliant with EU directive 2011/65/EU (RoHS) and EU directive 1907/2007/EC (REACH), guaranteeing the highest grade of electrical insulation for professional use.

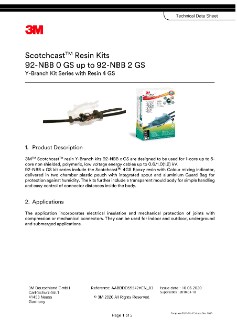

(PDF , 322KB)
